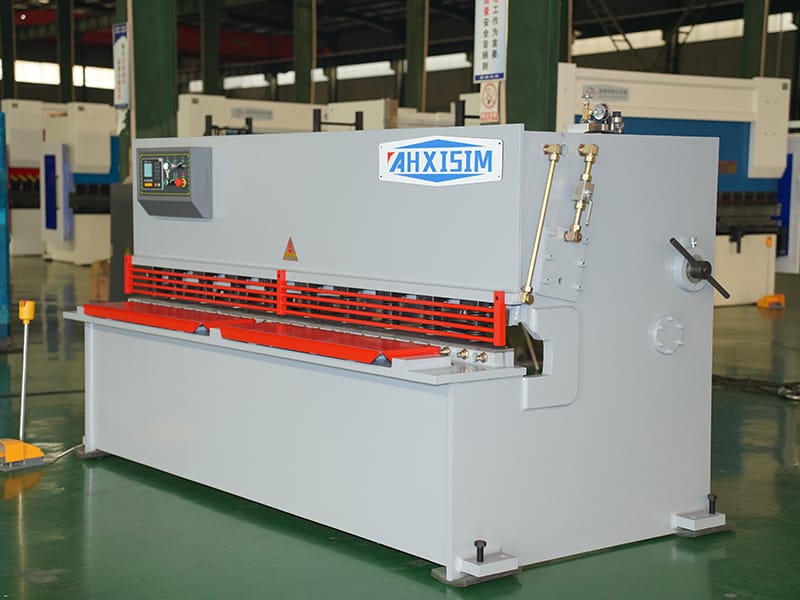

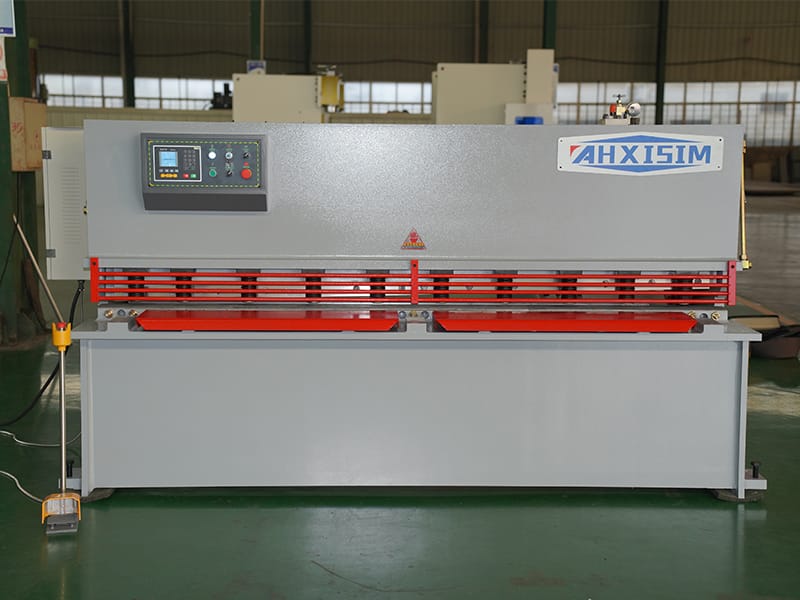

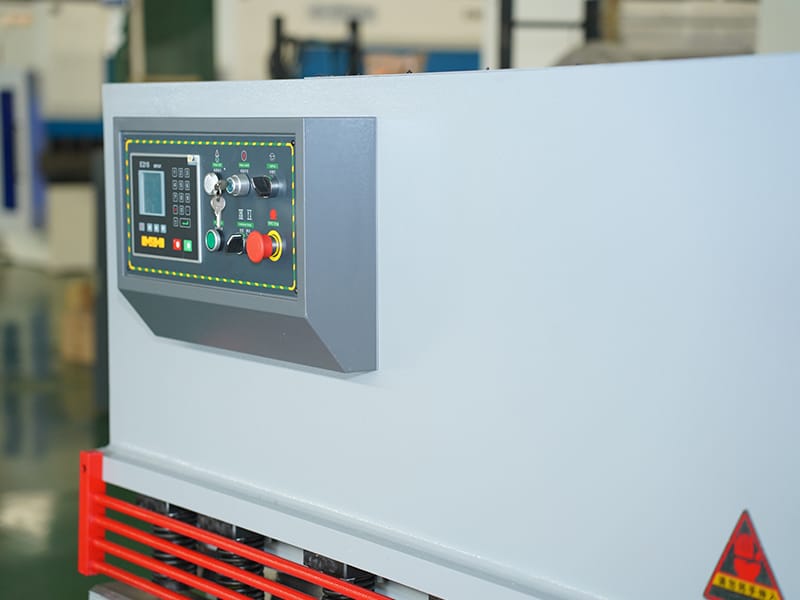

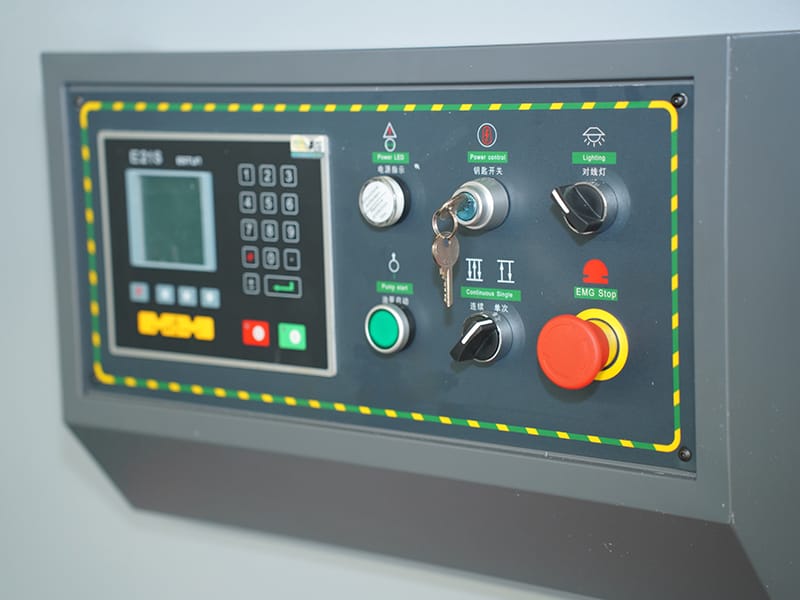

The machine features an all-steel welded structure with hydraulic upper transmission and stress-relief vibration treatment, ensuring high strength and excellent rigidity.

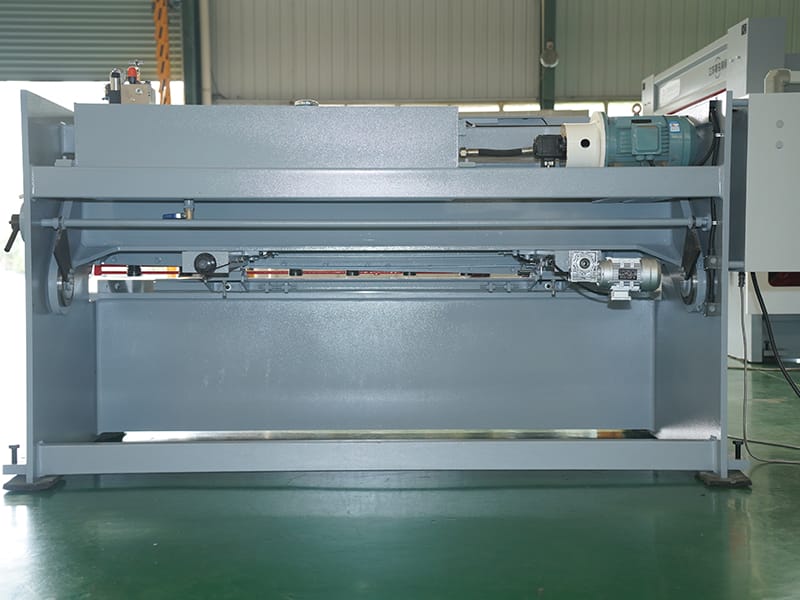

The hydraulic swing beam shear operates with a main hydraulic cylinder, mounted on the sidewall, performing a downward shearing motion. A nitrogen return cylinder simplifies the hydraulic system, making the operation more stable and efficient.

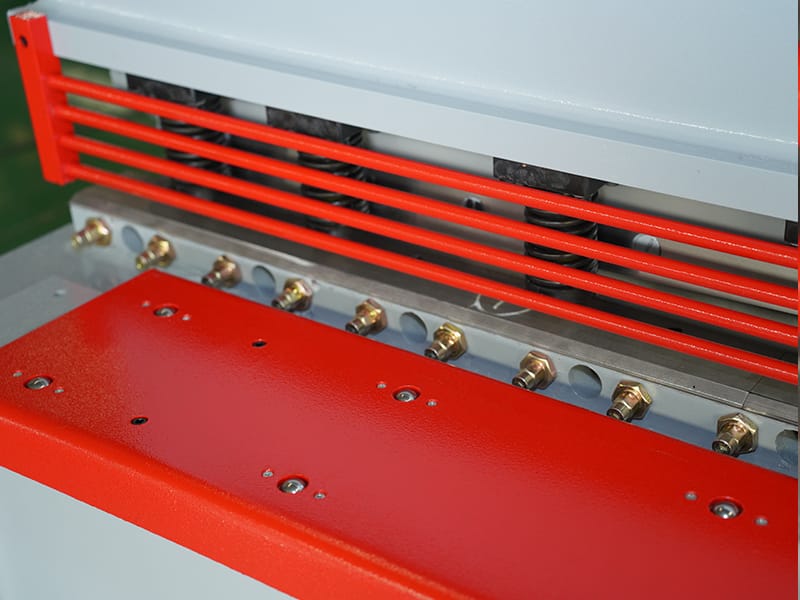

During the shearing process, the upper blade holder swings along a fixed axis, forming a circular motion. This lever principle reduces stress on the pivot points, extending the blade and machine lifespan. The compact structure allows for stepless stroke adjustment of the upper blade holder, significantly improving productivity and cutting efficiency.
This machine is widely used for shearing steel plates of various thicknesses, meeting the precision cutting demands of multiple industries. It is ideal for applications in automotive, tractor manufacturing, shipbuilding, electrical machinery, instrumentation, and aerospace industries.
| Model | Max. Thickness (mm) | Max. Width (mm) | Shear Angle (°) | Throat Depth (mm) | Back Gauge Distance (mm) | Stroke Per Minute (cycle/min) | Main Motor Power (kW) | Dimensions (mm) |
| QC12K 6*2500 | 6 | 2500 | 0.5-1.5 | 100 | 10-600 | 14 | 7.5 | 3100*1700*1950 |
| QC12K 6*3200 | 6 | 3200 | 0.5-1.5 | 100 | 10-600 | 12 | 7.5 | 3800*1700*1950 |
| QC12K 6*4000 | 6 | 4000 | 0.5-1.5 | 100 | 10-600 | 10 | 7.5 | 4600*1700*1950 |
| QC12K 6*5000 | 6 | 5000 | 0.5-1.5 | 100 | 10-600 | 8 | 11 | 5700*1850*2150 |
| QC12K 6*6000 | 6 | 6000 | 0.5-2 | 100 | 10-600 | 6 | 11 | 6700*1900*2350 |
| QC12K 8*2500 | 8 | 2500 | 0.5-2 | 100 | 10-600 | 14 | 7.5 | 3100*1800*2050 |
| QC12K 8*3200 | 8 | 3200 | 0.5-2 | 100 | 10-600 | 12 | 7.5 | 3800*1800*2050 |
| QC12K 8*4000 | 8 | 4000 | 0.5-2 | 100 | 10-600 | 10 | 11 | 4600*1800*2050 |
| QC12K 8*5000 | 8 | 5000 | 0.5-2 | 100 | 10-600 | 7 | 11 | 5700*1900*2250 |
| QC12K 8*6000 | 8 | 6000 | 0.5-2 | 120 | 10-600 | 6 | 11 | 6700*1900*2250 |
| QC12K10*2500 | 10 | 2500 | 0.5-2 | 120 | 10-600 | 10 | 11 | 3100*1850*2100 |
| QC12K10*3200 | 10 | 3200 | 0.5-2 | 120 | 10-600 | 8 | 11 | 3800*1850*2100 |
| QC12K10*4000 | 10 | 4000 | 0.5-2 | 120 | 10-600 | 6 | 15 | 4600*1850*2100 |
| QC12K10*5000 | 10 | 5000 | 0.5-2 | 120 | 10-600 | 5 | 18.5 | 5700*2000*2500 |
| QC12K10*6000 | 10 | 6000 | 0.5-2 | 120 | 10-600 | 4 | 18.5 | 6700*2000*2500 |
| QC12K12*2500 | 12 | 2500 | 0.5-2.5 | 120 | 10-600 | 10 | 18.5 | 3100*2000*2200 |
| QC12K12*3200 | 12 | 3200 | 0.5-2.5 | 120 | 10-600 | 8 | 18.5 | 3800*2000*2200 |
| QC12K12*4000 | 12 | 4000 | 0.5-2.5 | 120 | 10-600 | 6 | 18.5 | 4600*2000*2250 |
| QC12K12*5000 | 12 | 5000 | 0.5-2.5 | 120 | 10-600 | 5 | 22 | 5700*2100*2700 |
| QC12K12*6000 | 12 | 6000 | 0.5-2.5 | 120 | 10-600 | 4 | 22 | 6700*2100*3000 |
| QC12K16*2500 | 16 | 2500 | 0.5-2.5 | 120 | 10-600 | 8 | 22 | 3100*2100*2300 |
| QC12K16*3200 | 16 | 3200 | 0.5-2.5 | 120 | 10-600 | 7 | 22 | 3800*2100*2400 |
| QC12K16*4000 | 16 | 4000 | 0.5-2.5 | 120 | 10-600 | 6 | 22 | 4800*2100*2500 |
| QC12K16*5000 | 16 | 5000 | 0.5-2.5 | 120 | 10-600 | 5 | 30 | 5700*2150*2700 |
| QC12K16*6000 | 16 | 6000 | 0.5-2.5 | 120 | 10-600 | 4 | 37 | 6700*2150*2900 |
| QC12K20*2500 | 20 | 2500 | 0.5-3 | 120 | 10-600 | 6 | 22 | 3100*2050*2400 |
| QC12K20*3200 | 20 | 3200 | 0.5-3 | 120 | 10-600 | 5 | 22 | 3800*2150*2400 |
| QC12K20*4000 | 20 | 4000 | 0.5-3 | 120 | 10-600 | 4 | 30 | 4600*2200*2800 |
| QC12K20*5000 | 20 | 5000 | 0.5-3 | 120 | 10-600 | 4 | 37 | 5700*2300*2900 |
| QC12K20*6000 | 20 | 6000 | 0.5-3 | 120 | 10-600 | 3 | 37 | 6700*2300*3100 |
| QC12K25*2500 | 25 | 2500 | 0.5-3 | 120 | 10-600 | 5 | 37 | 3500*2250*2550 |
| QC12K25*3200 | 25 | 3200 | 0.5-3 | 120 | 10-600 | 5 | 37 | 4000*2250*2550 |
| QC12K25*4000 | 25 | 4000 | 0.5-3.5 | 120 | 10-600 | 3 | 37 | 4900*2300*3000 |
| QC12K25*5000 | 25 | 5000 | 0.5-3.5 | 120 | 10-600 | 3 | 45 | 6100*2500*3100 |
| QC12K25*6000 | 25 | 6000 | 0.5-3.5 | 120 | 10-600 | 3 | 45 | 7200*2600*3300 |
| QC12K30*2500 | 30 | 2500 | 0.5-3.5 | 120 | 10-600 | 4 | 30 | 3400*2500*3000 |
| QC12K30*3200 | 30 | 3200 | 0.5-3.5 | 120 | 10-600 | 3 | 37 | 4000*2600*3200 |
| QC12K30*4000 | 30 | 4000 | 0.5-3.5 | 120 | 10-600 | 3 | 45 | 4600*2600*3400 |
Shear blades are used to apply shear force to metal sheets in a variety of sizes, so that sheets are cut to the required size. Our shear blades are used for handling stainless steel, aluminum, carbon steel, high manganese steel and metal sheets.
Shear blades should match the specific shearing machine model, and here at Fangwei, we offer customers high quality shear blades to fit a variety of shear machine specifications. Customization services are also available.
