WT Precision Style

Trumpf Press Brake Tooling
  • Overview
  • Punches
  • Dies
  • Advantages
  • Tool Lengths
Overview

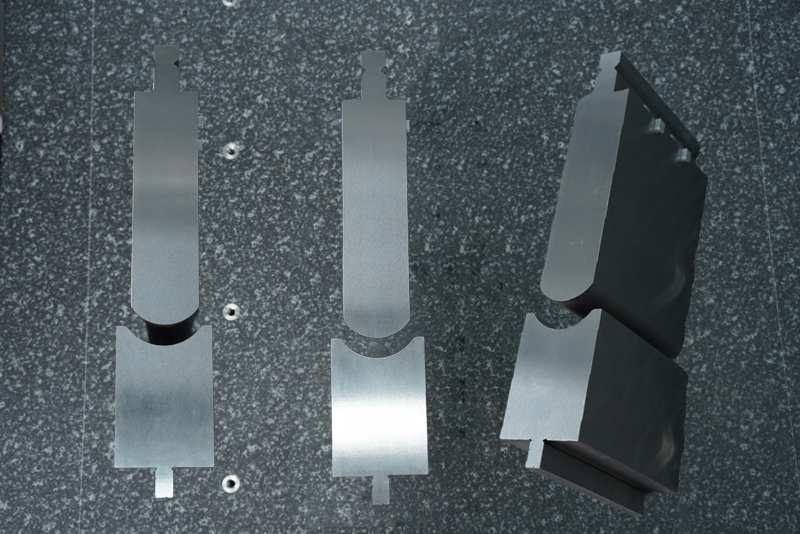

The Trumpf precision press brake tooling are WT style tooling and it is compatible with any type of Trumpf style press brakes.

Fangwei has a huge inventory of Trumpf press brake tooling to fit your press brakes. The following are common types of Trumpf press brake tooling. If you don’t find the press brake tools you need, welcome to contact us for custom service.

Punches

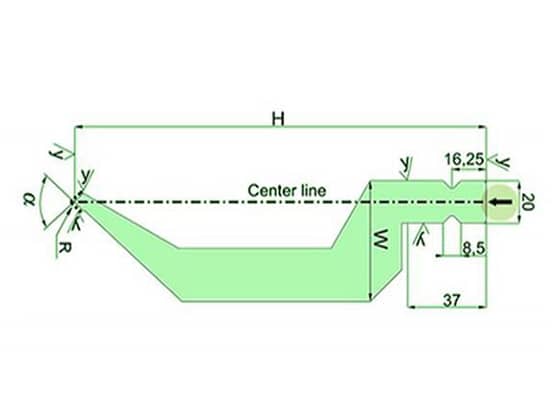

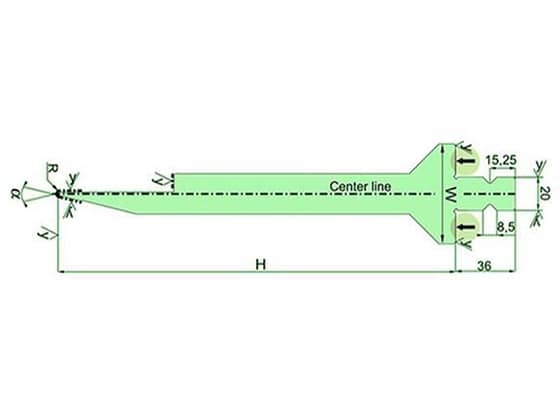

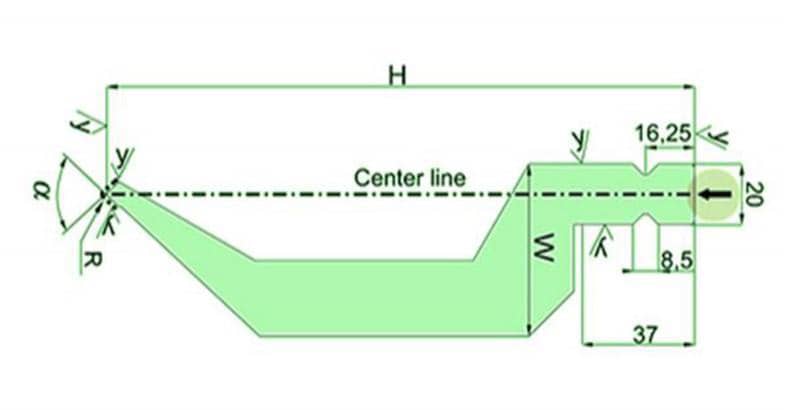

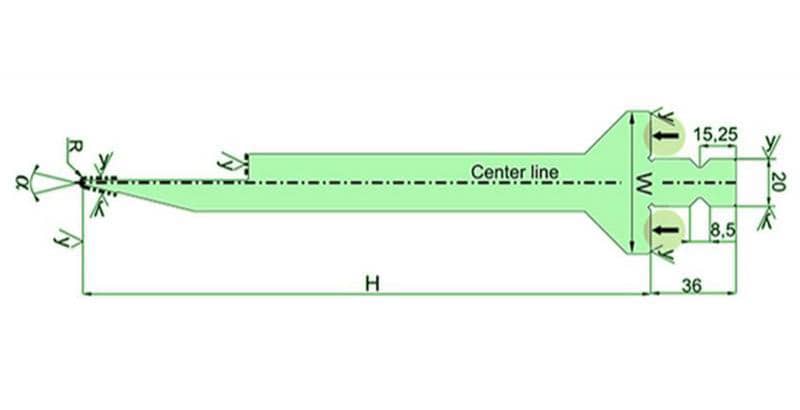

Punches/Top Tools

Fangwei has committed itself to providing General-purpose or customized press brake tooling to help our customers to improve their press brake production efficiency.

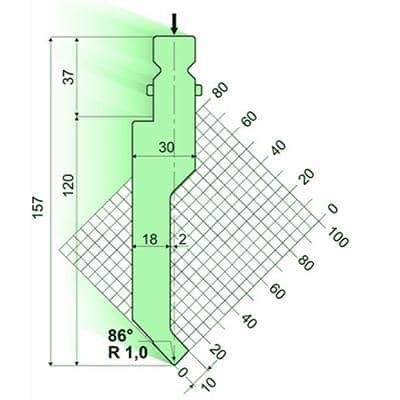

86° Punches/top-tools
84° Punches/top-tools
80° Punches/top-tools
60° Punches/top-tools
28° Punches/top-tools
24° Punches/top-tools
Punch/top-tool distance pieces
Holder for radius-tools and radius-tools R 7-50
Read More
Punches/Top tools
Dies

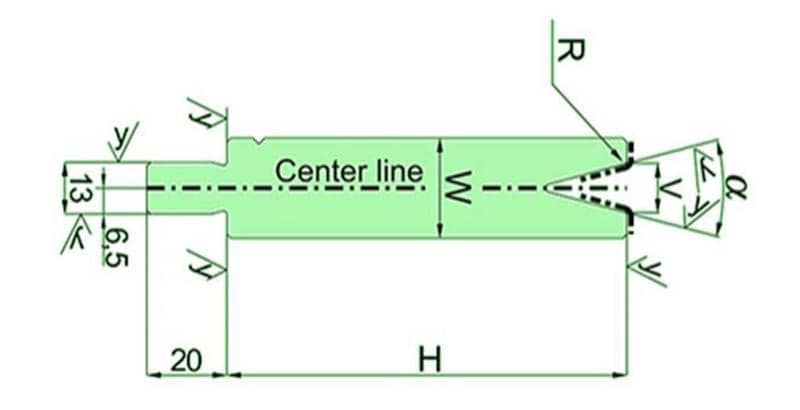

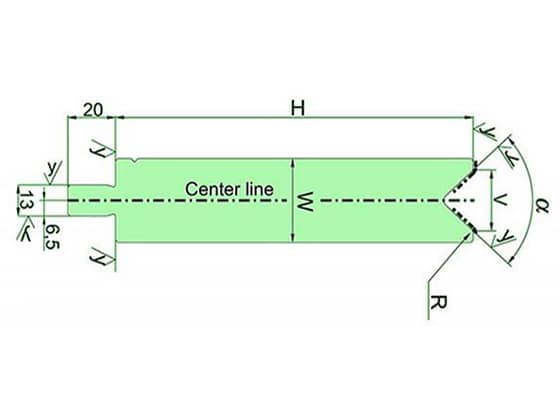

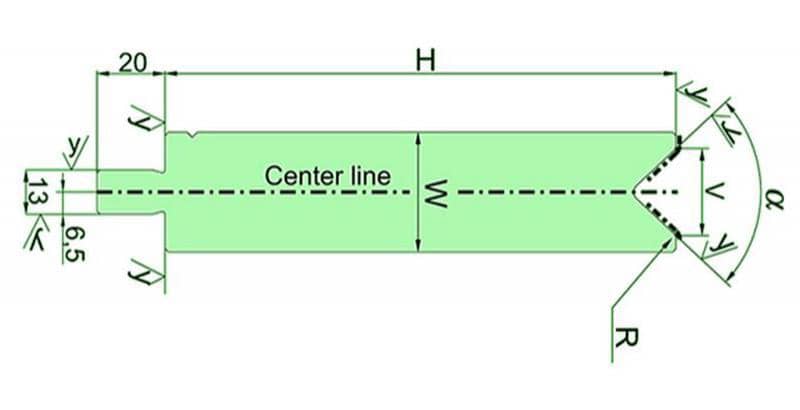

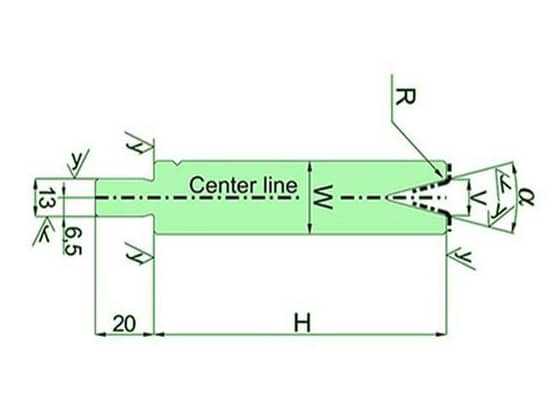

Dies

Fangwei can provide customers with a complete set of press brake tooling. Currently, we have abundant inventories of dies for Trumpf press brakes.

86° Dies, H=150mm
86° Dies, H=120mm
84° Dies, H=150mm
84° Dies, H=100mm
80° Dies, H=150mm
80° Dies, H=120mm
80° Dies, H=100mm
60° Dies, H=120mm
30° Dies, H=150mm
30° Dies, H=100mm
Read More
Dies
Advantages

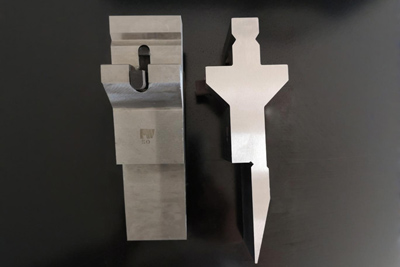

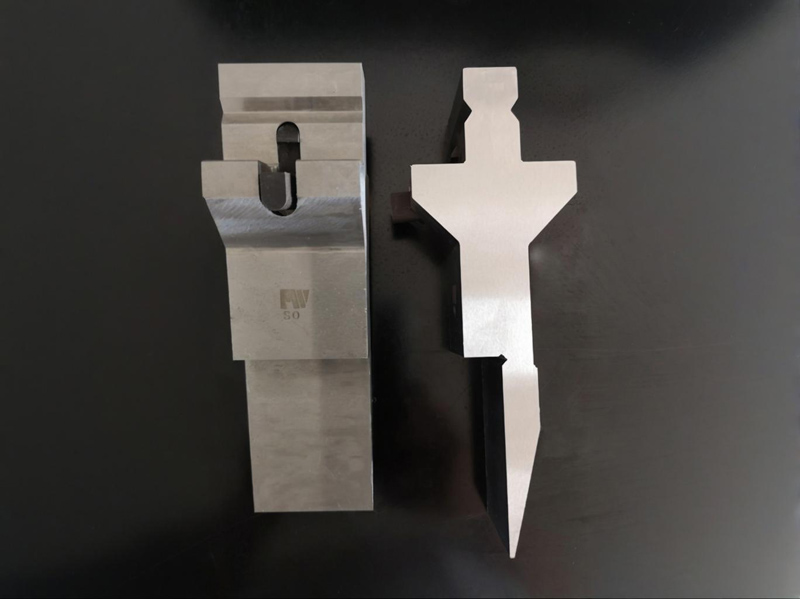

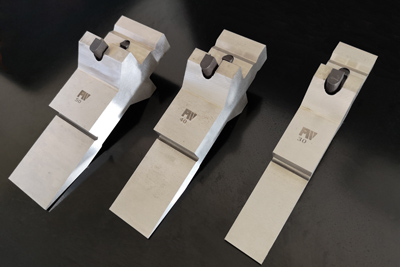

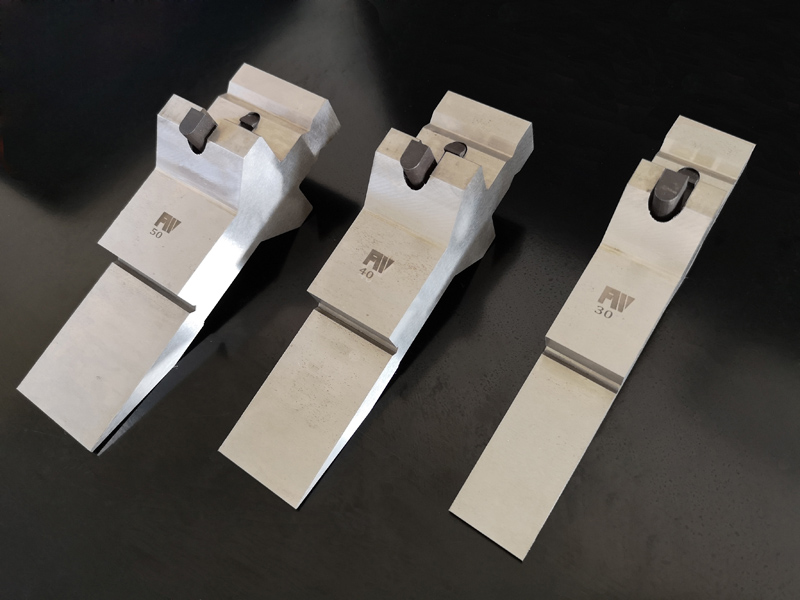

WT Precision Style
WT Precision Style
WT Precision Style
WT Precision Style
  • According to our rich experience in press brake tooling production, the following three kinds of optimum materials are recommended to satisfy your high-quality requirements. Other required materials can also be customized to fit your specific needs.
    1. 42 CrMo4, tempered to 1100 - 1200 N / mm²
    2. 1.2312, tempered to 950 - 1100 N / mm²
    3. C45, tempered to 800 - 850 N / mm²
  • The hardness of the bending radius and intake radius can reach 45-50RC.
  • The Trumpf press brake tooling features high universality. After the length or bend angle is being adjusted or working together with the adapters, the press brake tooling are compatible with the widest variety of press brake machines.
Tool Lengths
Punches/Top-Tools

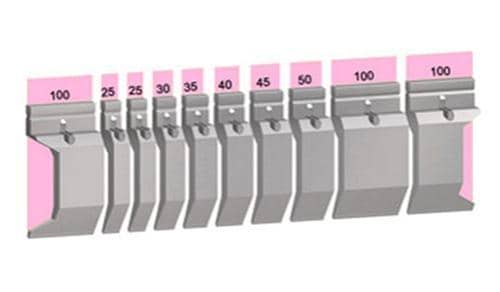

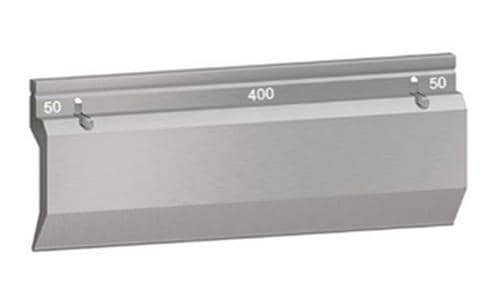

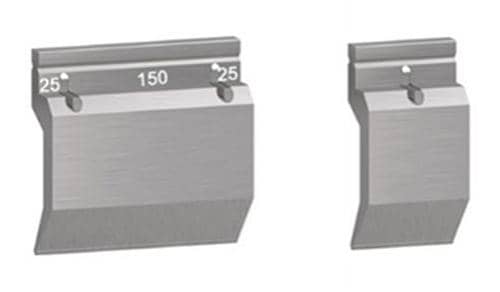

The punches can be delivered as a complete set or a sectionalized set according to customer requirements. For example, the length 550 mm punch can be sectionalized into 10 segments(100 mm, 25 mm, 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 100 mm, 100 mm).

Lenght Picture

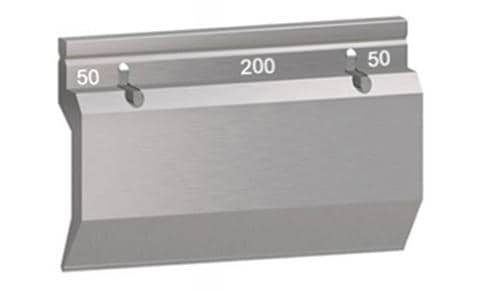

Length 500mm
Punches/Top-Tools
Length 300mm
Punches/Top-Tools
Length 200 mm, 100 mm
Punches/Top-Tools
Punches/Top-Tools
Dies

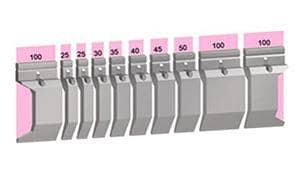

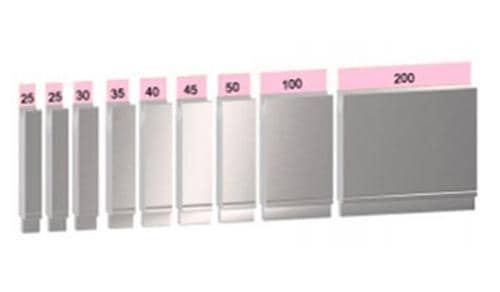

The dies can be delivered as a complete set or a sectionalized set according to customer requirements. For example, the length 550 mm die can be sectionalized into 9 segments(25 mm, 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 100 mm, 200 mm).

Lenght Picture

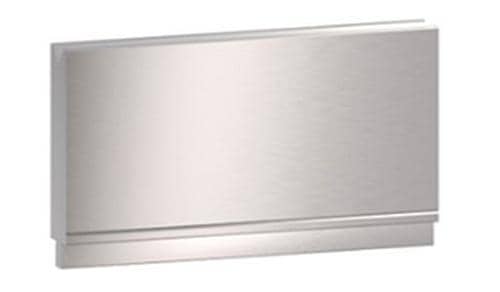

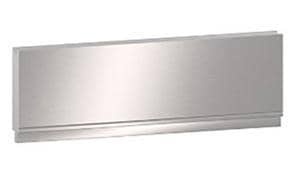

Length 500mm
Punches/Top-Tools
Length 300mm
Punches/Top-Tools

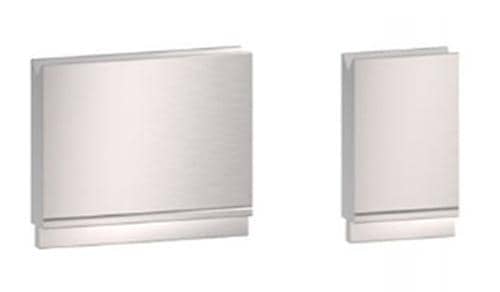

Length 200 mm, 100 mm
Punches/Top-Tools
Punches/Top-Tools
