55° Dies, H=86mm, Amada Press Brake Tooling
Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.
-

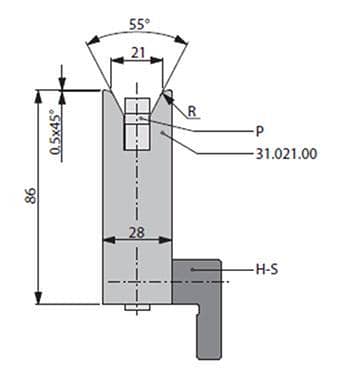

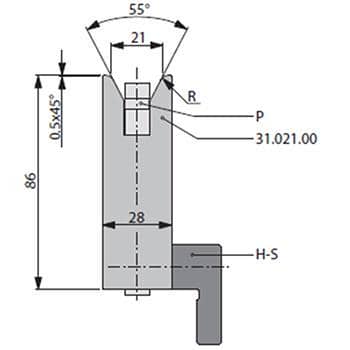

InquiryF 31.021(F=500KN/m Max) Radius 3.5mm Length Weight Width 28mm Material Thickness 2.0mm-4.0mm Standard Length100mm 2.14KG Standard Length500mm 10.70KG -

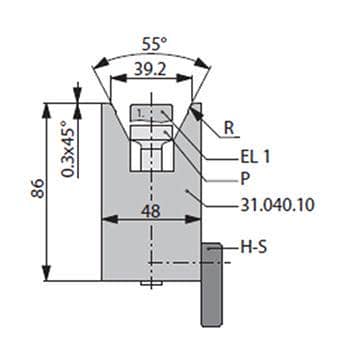

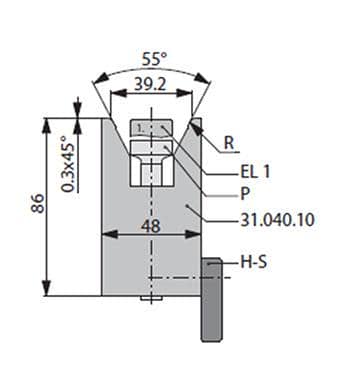

InquiryF 31.040.10(F=750KN/m Max) Radius 4mm Length Weight Width 48mm Material Thickness 3.5mm-7.0mm Standard Length100mm 2.96KG Standard Length500mm 14.75KG
