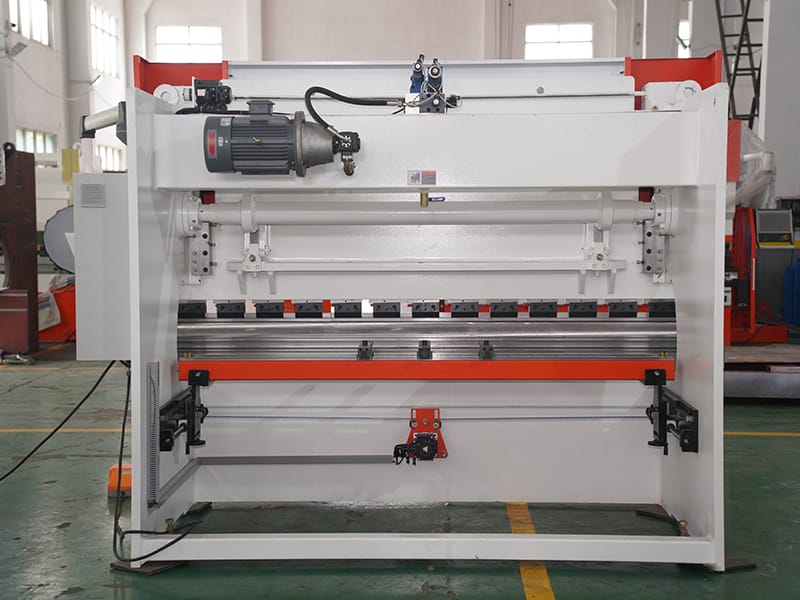

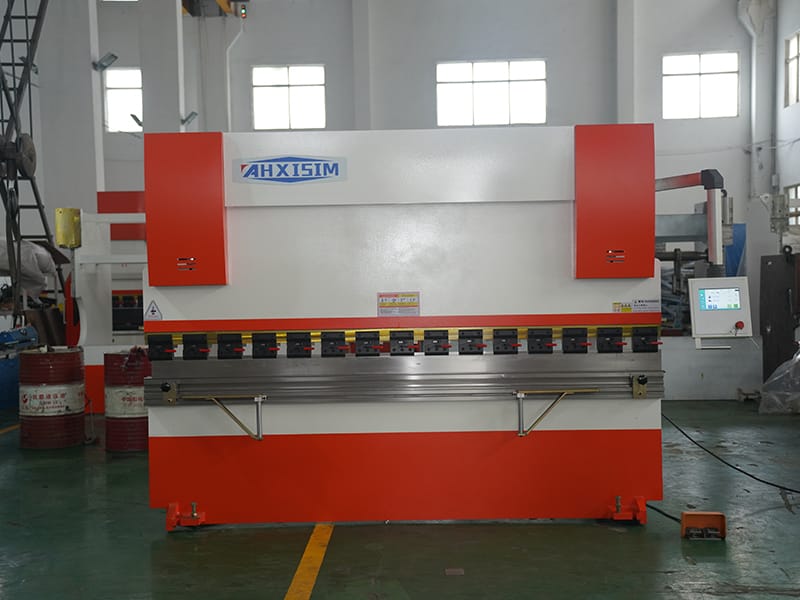

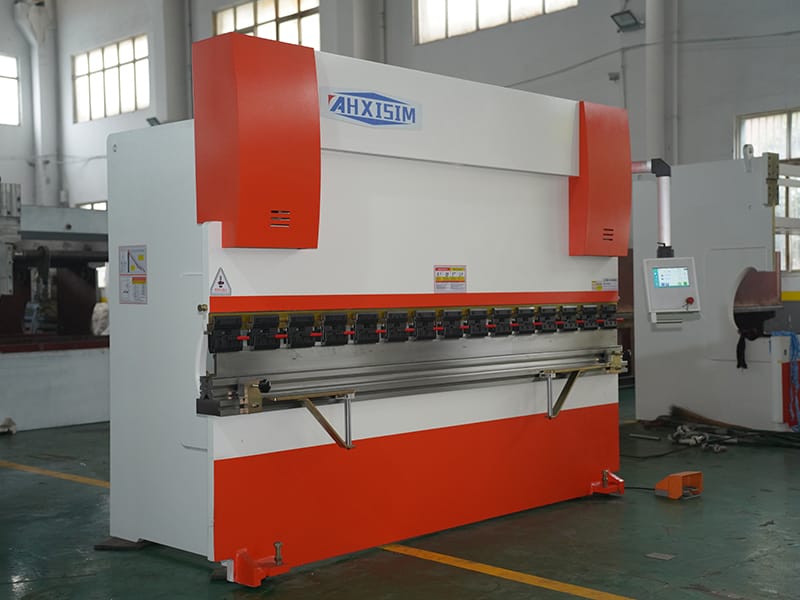

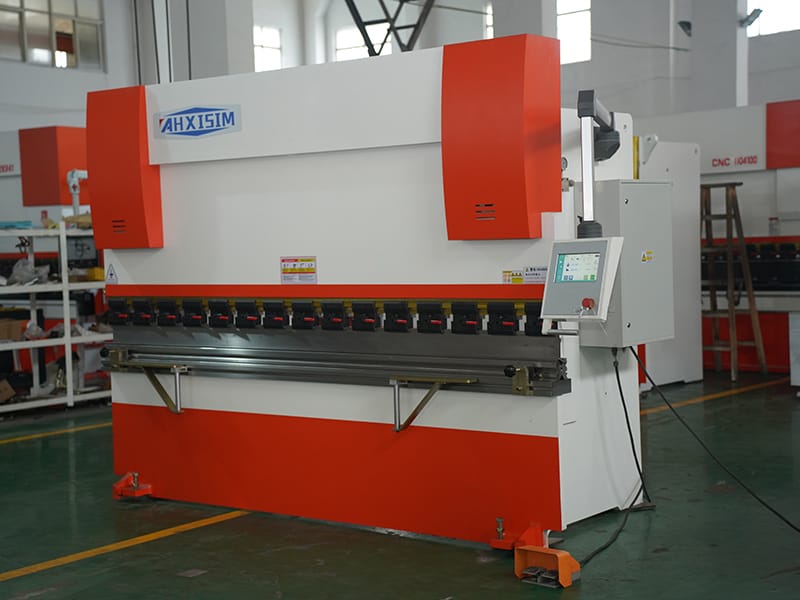

Torsion Bar Press Brake, TP10S

The torsion bar press brake is an essential machine in the sheet metal industry, designed for precise bending and forming of metal workpieces. It enables steel plates to be pressed into various shapes according to specific production requirements, ensuring accuracy and efficiency in metal fabrication.

Bending Capabilities
Material Carbon steel, alloy steel, aluminum alloy, copper alloy, high-speed steel, carbide alloy
Length 10-6000
Width 10-1500
Thickness 0.5-20
Angle 0-180 degrees
Accuracy 0.1-0.3mm
Shapes V Shape, U Shape, Z Shape, L Shape
Request a Quote

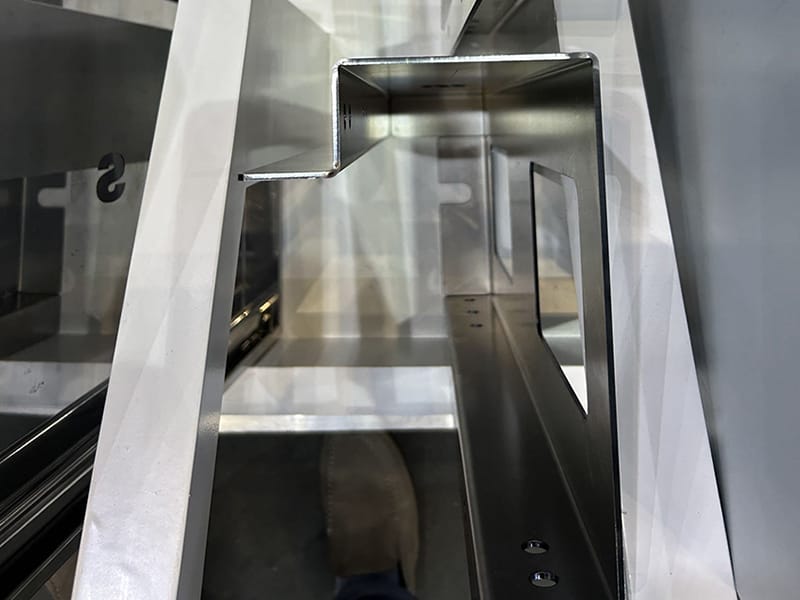

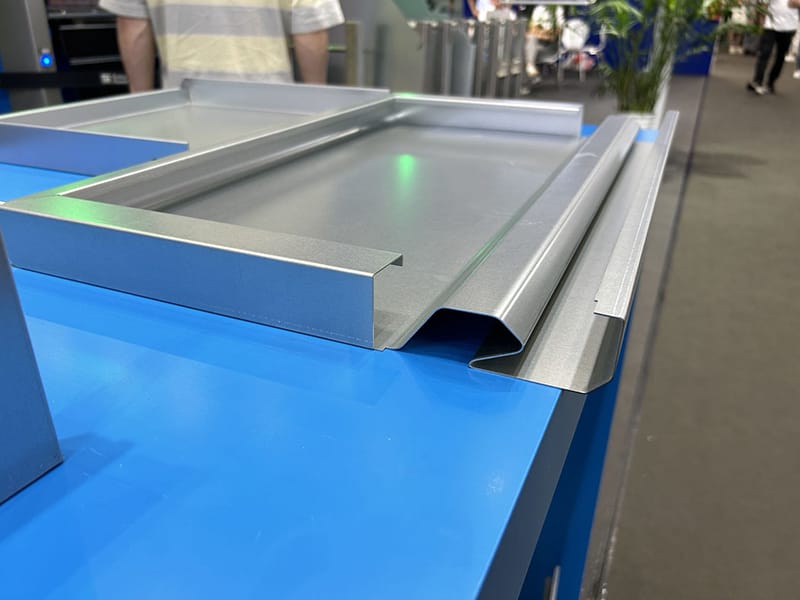

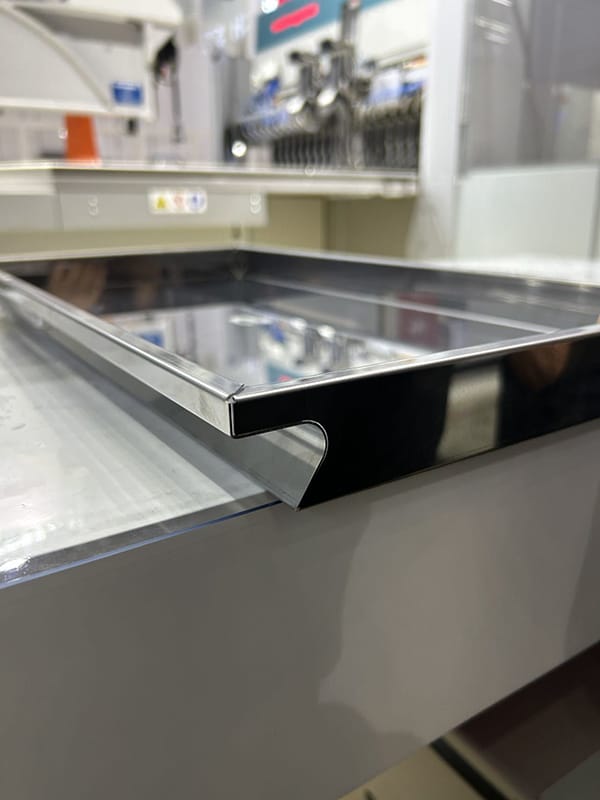

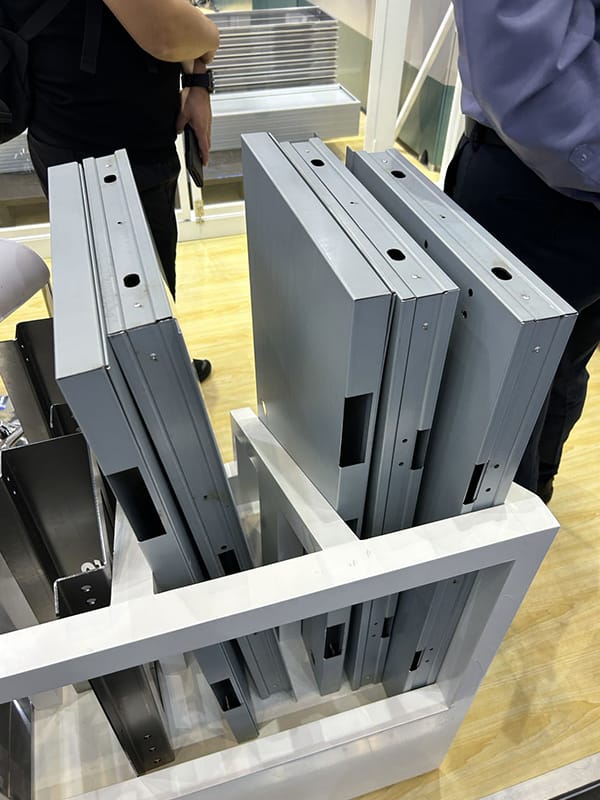

Examples of Our Processed Sheet Metal Products
  • Torsion Bar Press Brake, TP10S
  • Torsion Bar Press Brake, TP10S
  • Torsion Bar Press Brake, TP10S
  • Torsion Bar Press Brake, TP10S
Technical Parameters
Torsion Bar Press Brake, TP10S

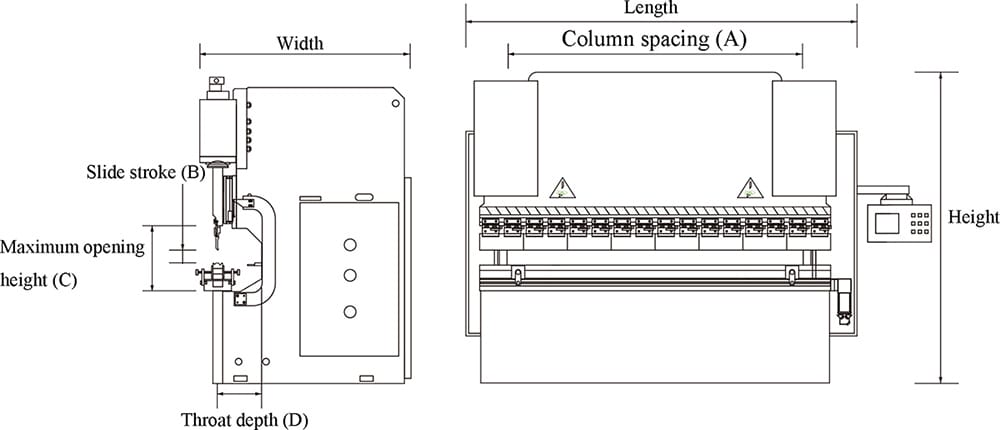

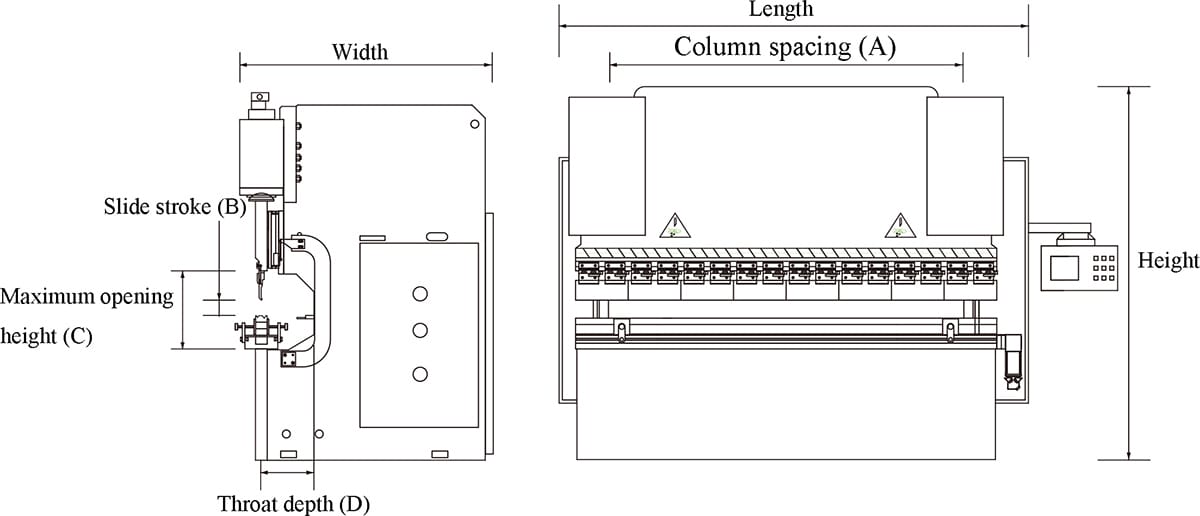

Length Width Column spacing(A) Slide stroke (B) Maximum opening height (C) Throat depth (D) Height
Model Nominal Pressure (kN) Workbench Length (mm)  Throat Depth (mm) (D) Column Spacing (mm)(A) Slide Stroke (mm) (B) Max. Opening Height (mm)© Main Motor Power (kW)
XSM 63T/2500 630 2500 280 2050 120 350 5.5
XSM 80T/2500 800 2500 320 2050 120 370 7.5
XSM 100T/2500 1000 2500 400 2050 120 370 7.5
XSM 125T/2500 1250 2500 400 2050 140 40 7.5
XSM 100T/3200 1000 3200 400 2560 120 370 7.5
XSM 125T/3200 1250 3200 400 2560 140 370 7.5
XSM 160T/3200 1600 3200 400 2550 180 460 11
XSM 200T/3200 2000 3200 400 2500 200 470 11
XSM 250T/3200 2500 3200 400 2500 250 550 18.5
XSM 300T/3200 3000 3200 400 2500 250 560 22
XSM 100T/4000 1000 4000 400 3160 120 370 7.5
XSM 125T/4000 1250 4000 400 3150 140 370 7.5
XSM 160T/4000 1600 4000 400 3150 180 460 11
XSM 200t/4000 2000 4000 400 3100 200 470 11
XSM 250T/4000 2500 4000 400 3100 250 550 18.5
XSM 300T/4000 3000 4000 400 3100 250 560 22
XSM 400T/4000 4000 4000 400 3100 300 600 30
Features

    • Utilizes advanced CNC technology to achieve high-precision bending, accommodating complex shapes and angles with minimal manual intervention. The high level of automation significantly boosts production efficiency, reducing labor involvement and downtime.

    • Built with a fully welded machine frame and assembled worktable, ensuring exceptional stability and durability for long-term operation.

    • The CNC system allows precise control over bending angles, bending length, and ram stroke, enabling efficient and highly accurate bending operations.

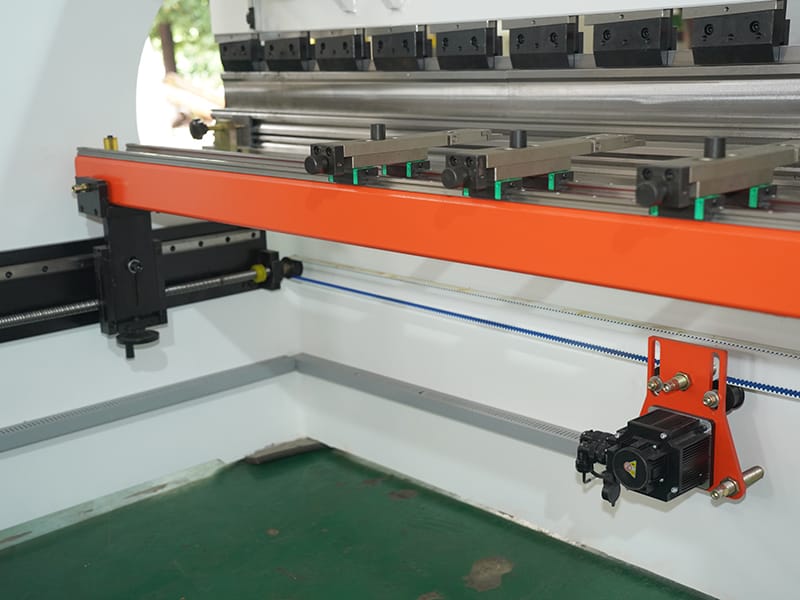

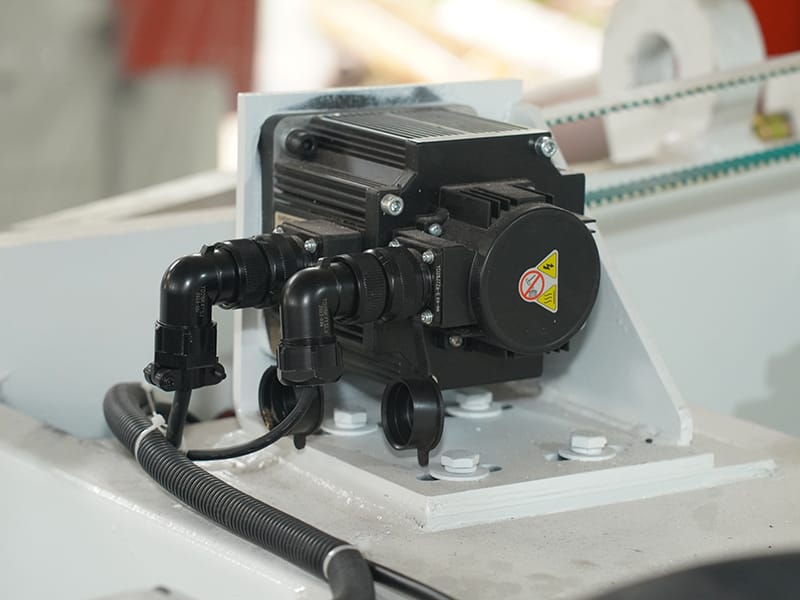

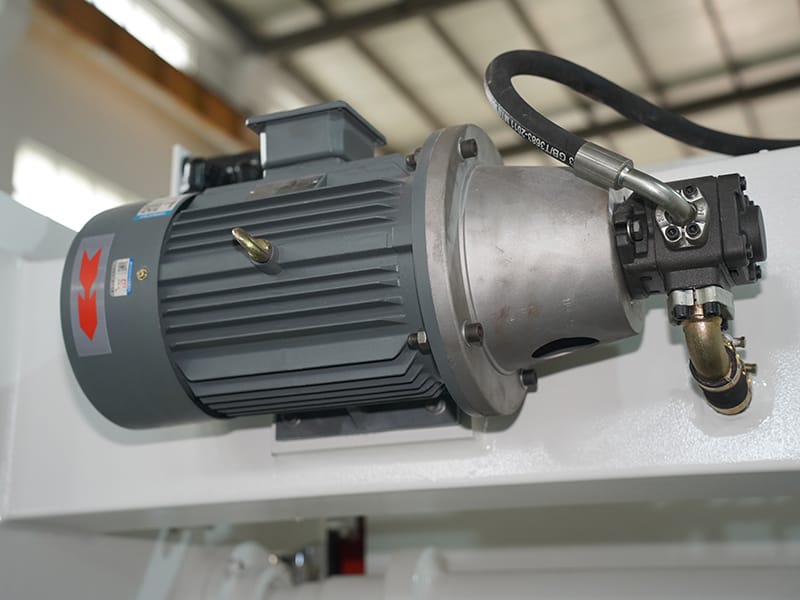

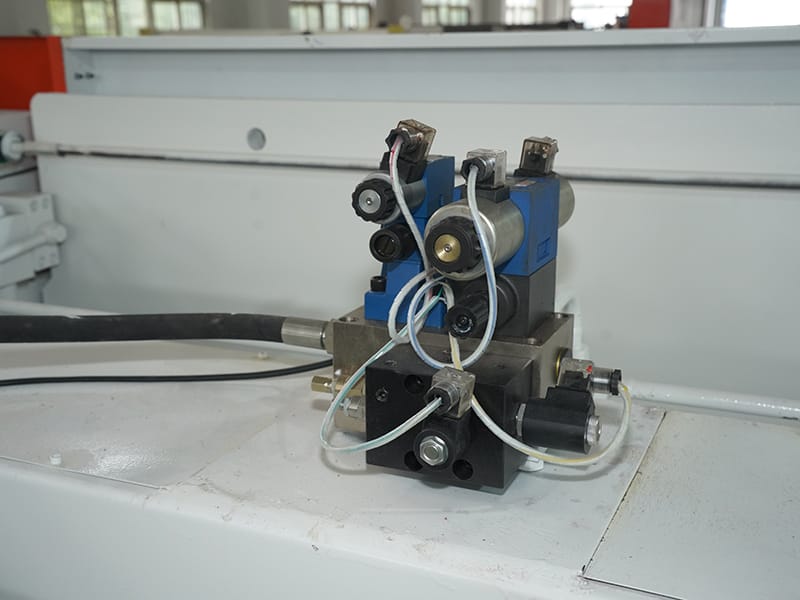

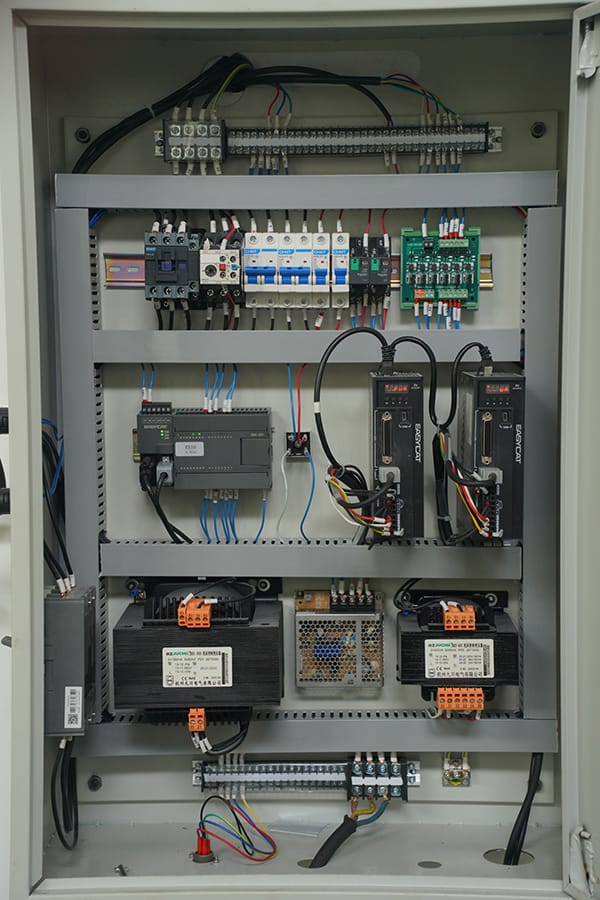

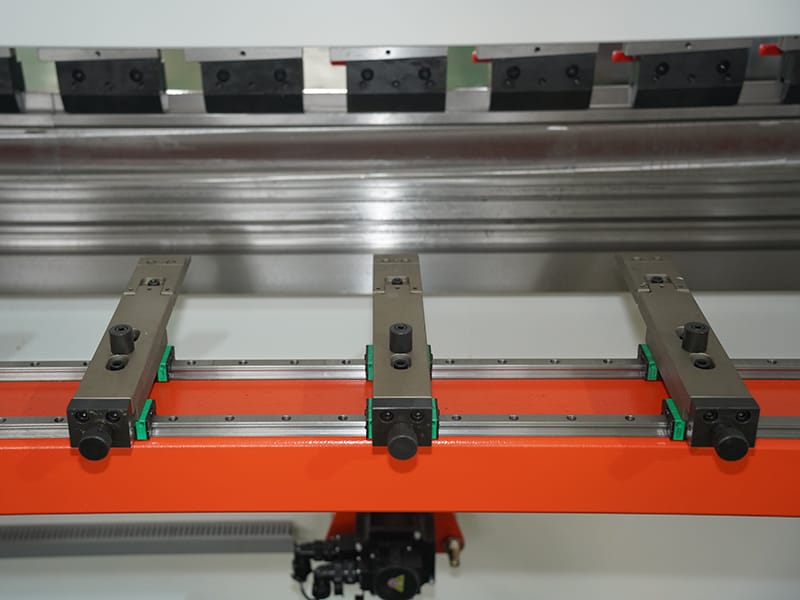

Machine Components

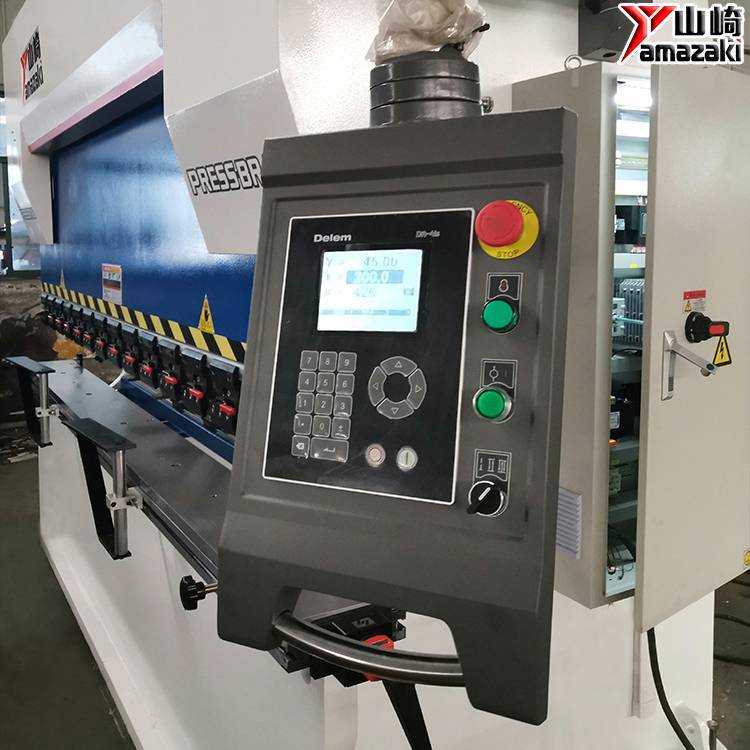

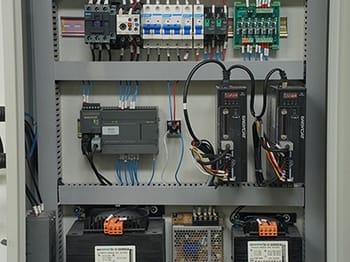

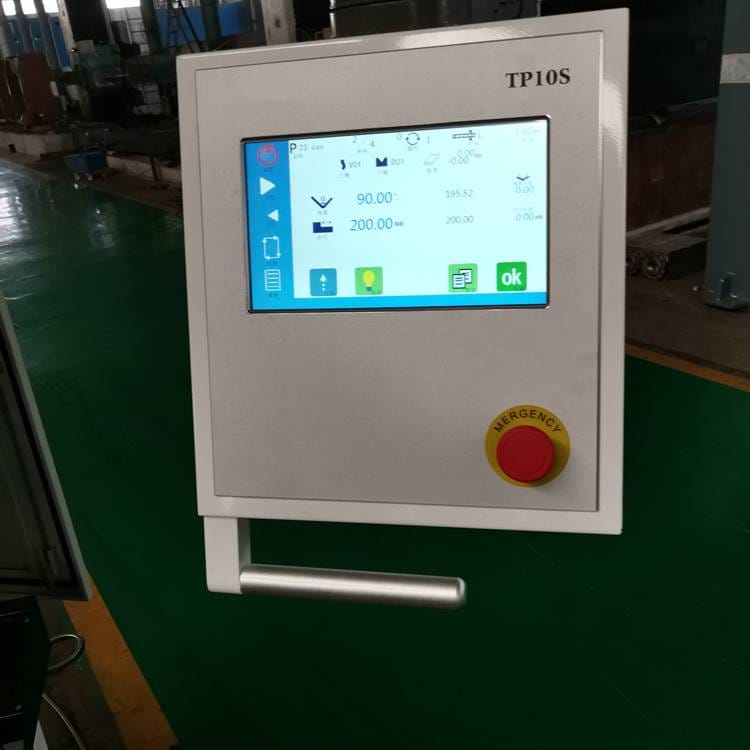

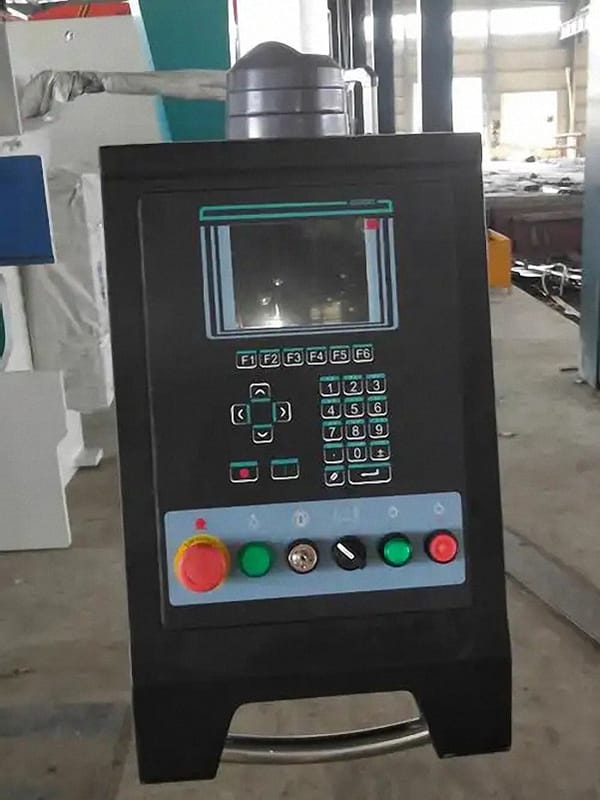

Optional Control System
